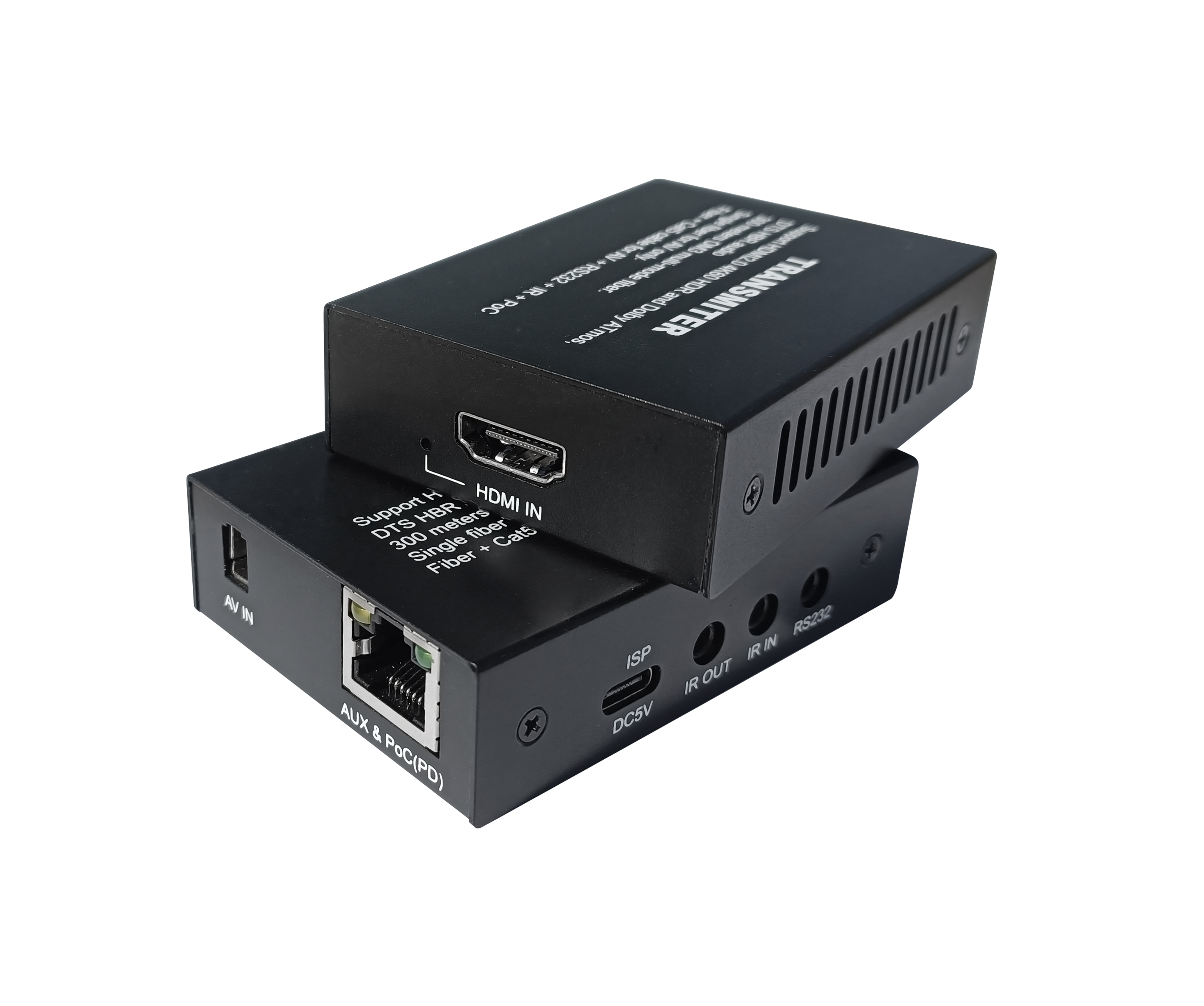

OV11HO-1FO-100
▶1xLC Fiber
▶MM mode
▶Length: 300M
▶POC
Features
1.Support HDMI2.0 18Gbps bandwith with all audio and video format;
2.Can work in single fiber mode when only need HDMI signal from TX to RX;
3.When work in fiber plus CAT cable mode, the extender support EDID bypass, IR and RS232;
4.Optical fiber transmission is immune to electromagnetic inerference;
5.The communication on Cat5e/6 cable is in the twisted pair differential communication mode, with very low EMI and good anti-inerference ability;
6.Up to 300 meters OM3 mulit-mode fiber and Cat5e/Cat6 cable;
7.High performance and low cost brougth about by technological innovation;
Specifications
| Transmiter | Input: HDMI Output: LC+RJ45 Control Signal: IR IN, IR OUT, RS232 Power: USB-C |
| Receiver | Input: LC,RJ45 Output: HDMI Control Signal: IR IN, IR OUT, RS232 Power: USB-C or over Cat6 cable form TX |
| Optical Fiber | OM3 Multi-mode LC fiber |
| UTP cable | CAT5e/CAT6 |
| Video Bandwith | 18Gbps |
| Max Support Video Resolution | 4K@60HZ(4096x2160) |
| Color Space | RGB, YUV4:4:4, YUV4:2:2, YUV4:2:0 |
| Max Support Color Depth | 36bit Deep Color |
| HDR | HDR 10, HDR 10+, Dolby Vision |
| EDID Compatible | YES |
| HDCP | 2.3 |
| Maximum Transmission Distance | 300M |
| Audio Format | Dolby Atmos, Dolby True HD, Dolby Digital+, Digital, DTS HD, DTS X, HD Master Audio, HD High Resolution Audio, LPCM7.1, |
| Power Over Cable (POC) Support | YES |
Download datasheet:
OV11HO-1FO-100 V1.2.pdf
