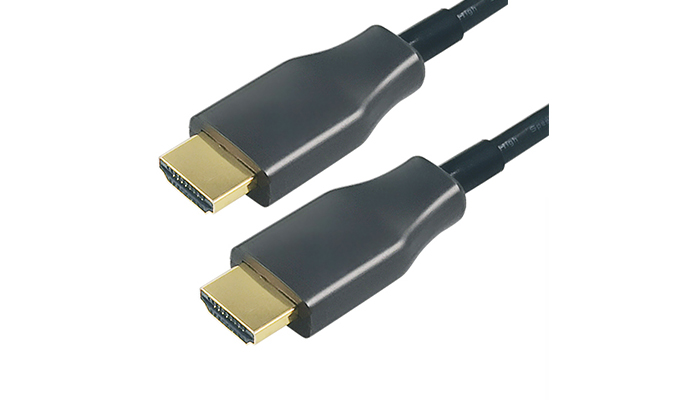

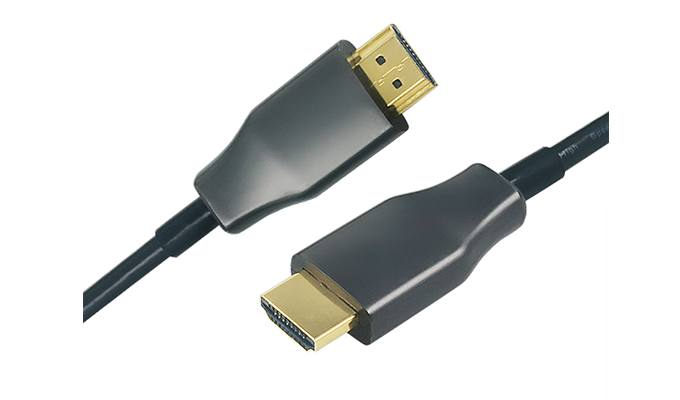

Support HDMI2.1 48G bandwidth with all audio and video format. OPTAV HDMI Active Hybrid Cable is one of the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Maximum Data Rate 48Gbps bandwidth with light weight, flexible hybrid cable. With our advanced optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 30m maximum length, plug and play. No external power required.
Introduction
Support HDMI2.01 48G bandwidth with all audio and video format.
| Connector | HDMI Type-A, Male-Male |
| HDMI Verion | HDMI 2.1 |
| Resolution | 8K 60HZ /4K 120HZ (downward compatiblity) |
| Bandwidth | 48Gpbs |
| HDCP | HDCP 2.3/2.2/1.4 |
| Color Space | RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020 |
| Audio | Dolby Digital True HD,DTS-HD Master Audio, Dolby Digital PlusTM, Dolby TrueHDTM, DVD Audio, SA-CD |
| HDR | HDR10/HDR10+/Dolby vision |
| Other Function | CEC/EDID/ARC |
| Color | Black |
| Length | 5-100M |
| Fiber | 4-core Fiber |
| Shell | 24K Gold Plating |
| Outer Diameter | 4.8 mm |
| Bending Radius | 20 mm |
| UL | CL2/CL3 |
| EMC | Low EMI meet CE/FCC requirement |
| Working Temperature | -10~50°C |
| Storage Temperature | -20~70°C |
| Power Consumption | <0.5W |
| Terminal tensile strength | 15KG |
| Service life | >50000h |
Download Datasheet:
HDMI AOC.pdf
