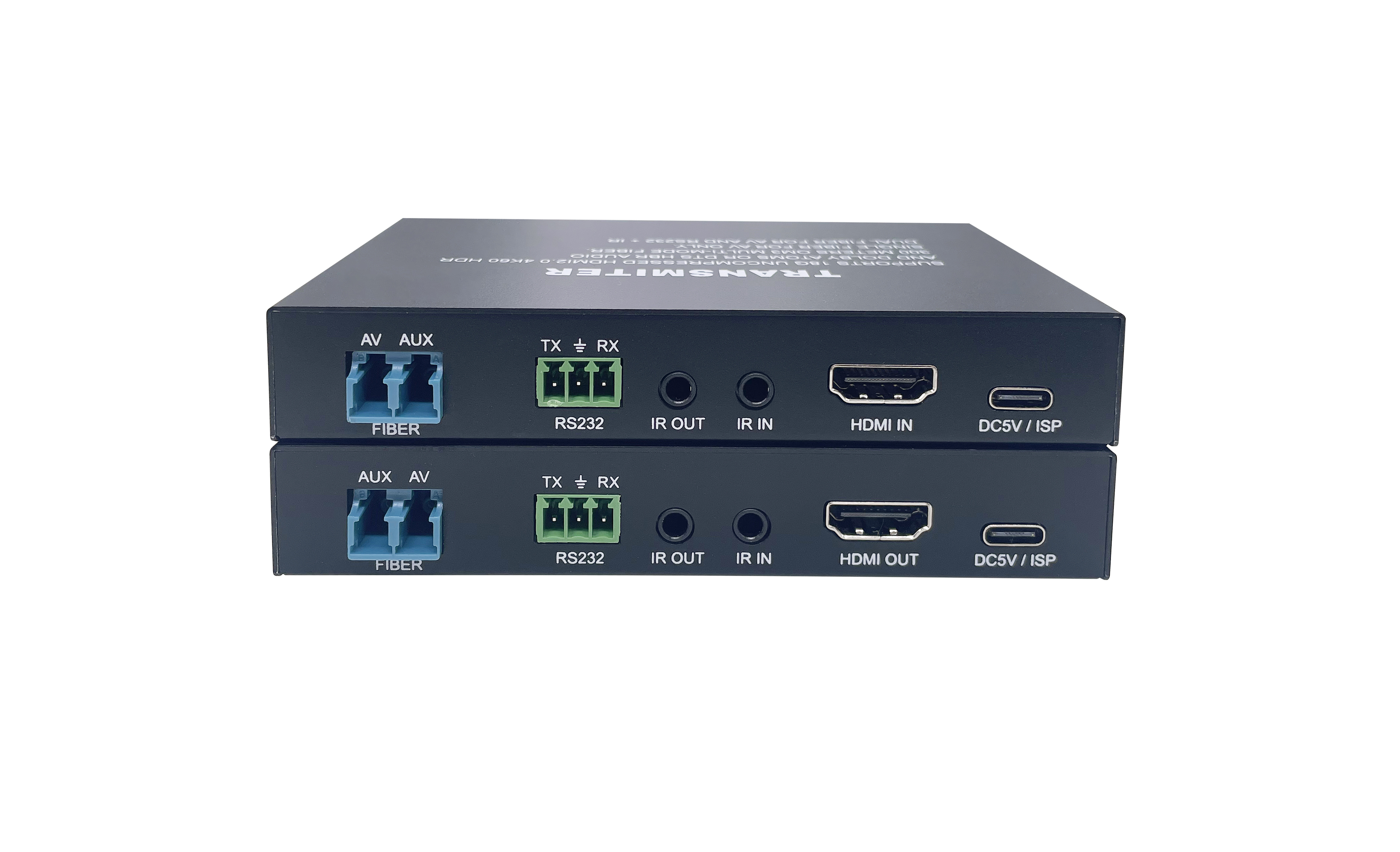

OV11-HH-2FO-M20, it is HDMI 2.0 optical fiber extender which can transmit HDMI 2.0 signal over singe fiber or dual fiber without any compression at low cost. This enables common video extension installations to use high quality fiber optic transmission technology. When only need to transmit Audio/visual signal go display, single fiber is needed. Additional AUX fiber can be used for auxiliary signal such RS232, IR for device control. Small size is convenient for installation. Ultra-low power consumption makes user do not need to pay attention to heating problems. LC terminated fiber is easy to buy or terminated in the field. It can be used for the replacement of CAT cable HDMI extender specially in the EMI sensitive place.
Features
Ø Single fiber extender. Or dual fiber for full function extender which support all communication between TX and RX and also support IR,RS232 system control signal.
Ø Support 18Gbps video bandwidth.
Ø HDMI2.0 & HDCP2.2 supported.
Ø Video resolution up to 4K@60Hz YUV4:4:4.
Ø Support HDR10 and HDR10+.
Ø Single fiber with LC connector (Up to 300M-500M).
Ø Audio formats support Dolby Atmos, TrueHD, Digital+, DTS X, HD Master Audio, HD High Resolution Audio,PCM2-8CM.
Ø Low EMI.
Ø Small size and easy installation.
Ø Can be powered by USB port.
Package
Ø Transmitter x 1
Ø Receiver x 1
Ø 5V power adapter x 2
Ø USB type-c cable x 2
Ø IR receiver cable x 1
Ø IR emitter cable x 1
Ø Phoenix terminal(male) x 2
Ø Mounting bracket with screw
Application
Specification
Transmitter | Receiver | |
HDMI compliance | HDMI 2.0 | |
HDCP | 1.4/2.2 | |
Video Bandwidth | 18Gbps | |
Distance | OM3:300 Meter(984ft) OM4:400 Meter(1312ft) OM5:500 Meter(1640ft) | |
Supporting Resolution | 4Kx2K@60HZ(4:4:4 8bit) | |
Connector/Fiber | HDMI-A 19 Pin (male)/ LC | |
ESD Protection | Human body model-±8KV(air-gap discharge) &±4KV(contact discharge) | |
Power Supply | 5V/1A | |
Power Consumption | 3W | 3W |
Dimension(LxWxH) | Model: 120x75x20 (mm) Package: 270x150x85(mm) | |
Weight | Model: RX 230g TX 230g Package: 835g | |
Environment | Operating Temperature Range: 0°C~40°C Storage Temperature Range: -20°C~60°C | |
Relative Humidity | 20-90% RH (no condensation) | |
