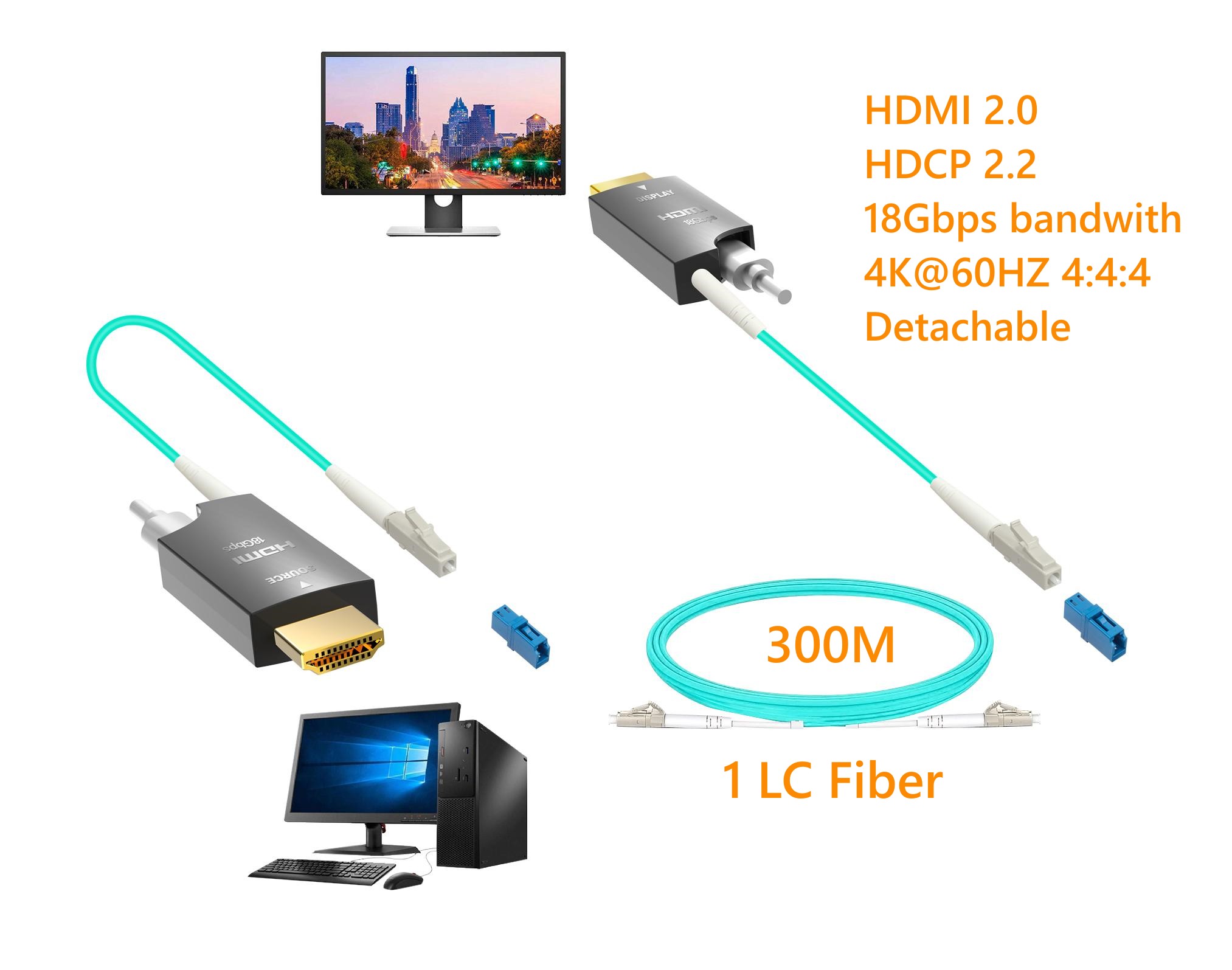

OV11-HH-1FO-M20, it is HDMI 2.0 optical fiber extender which complies with HDMI 2.0/HDCP 2.2 standard and supports real uncompressed 4K(4096x2160) resolution. It can transmit high quality 4K signal up to 300 meter (984ft) by multi-mode LC fiber without any loss.
Features
Ø HDMI2.0 and HDCP2.2 supported.
Ø EDID bypass.
Ø Support High Definition, up to 4K@60Hz YUV4:4:4.
Ø Support DDC/HPD.
Ø Single fiber with LC connector(Up to 300M).
Ø True 4.5Gbps per channel, 18Gbps in total.
Ø Standard HDMI-A interface.
Ø Hot Pluggable.
Ø Low EMI, does not need shielded cable.
Ø Adopt 850nm multi-mode fiber.
Ø Small size and detachable design for easy installation.
Package contents
① 1 pair of HDMI 2.0 single fiber extender
② 2 x USB power cable
③ 2 x LC coupler

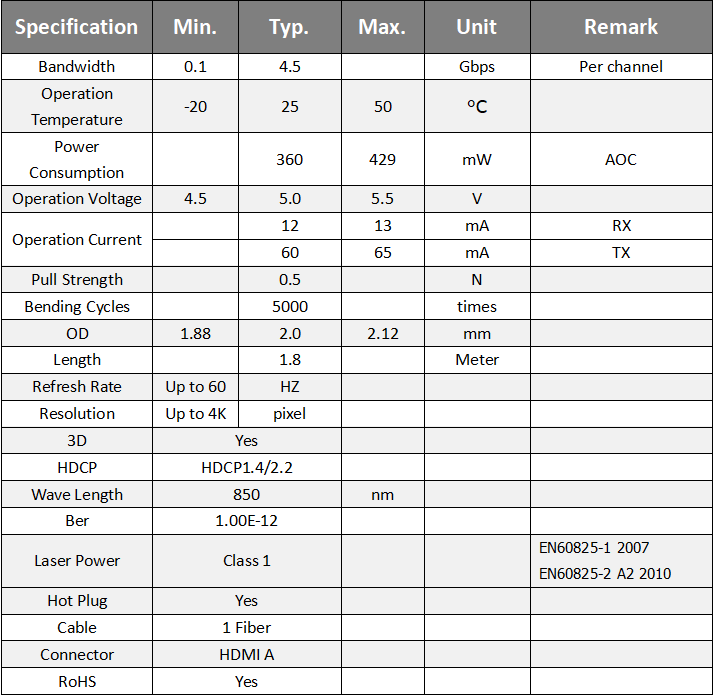

Specification:
