OM3 LC to LC Fiber Patch Cable Duplex 10G LSZH
| Connector Type | Duplex-lc-lc |
| Cable Type | OM3 Multimode Fiber |
| Compatible Devices | Data Transmission Equipment |
| Color | OM3-LC-LC |

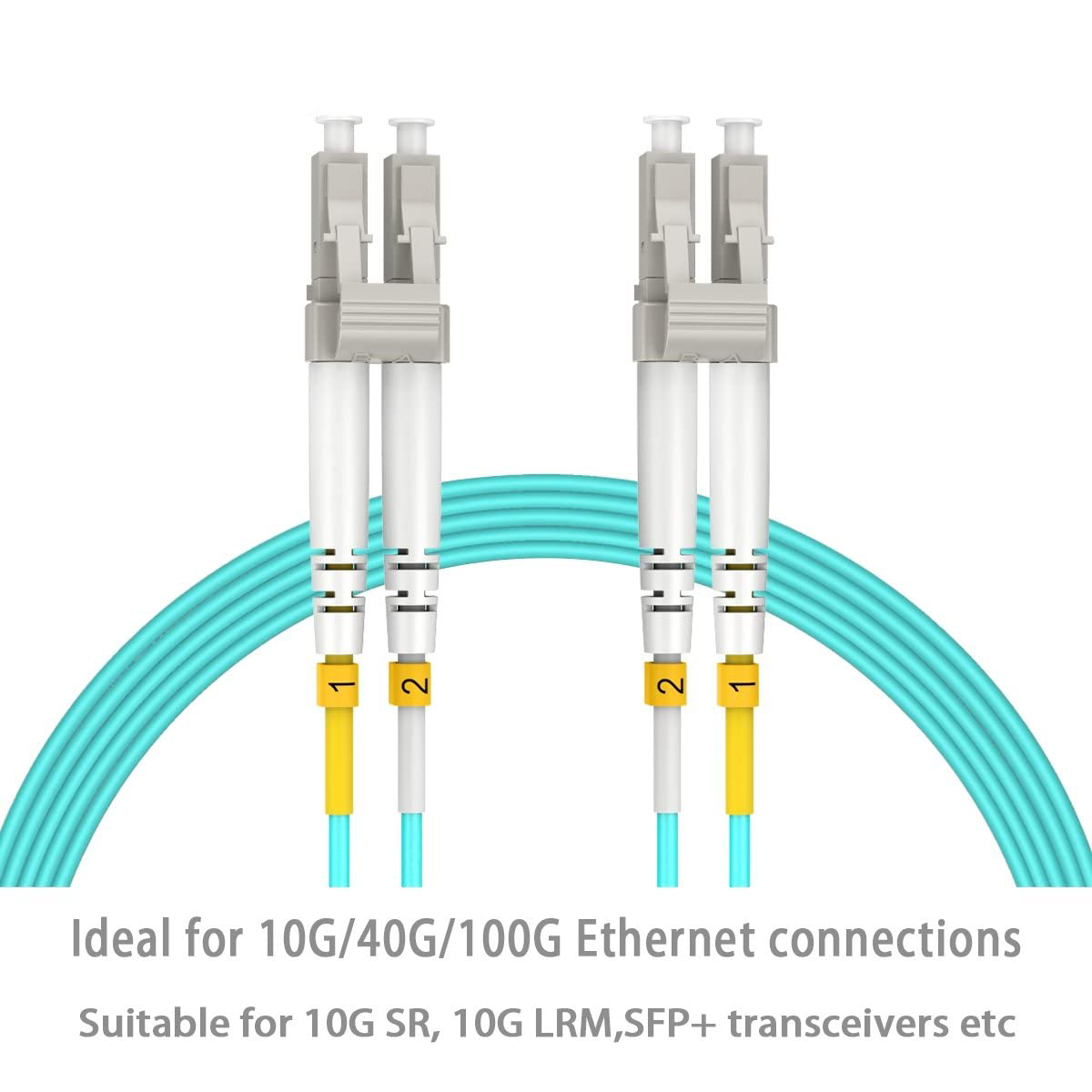

OM3 Multimode Fiber Patch Cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
10G Ethernet Max Distance: 300Meters at 850nm
40G Ethernet Max Distance: 240Meters at 850nm
100G Ethernet Max Distance: 100Meters at 850nm

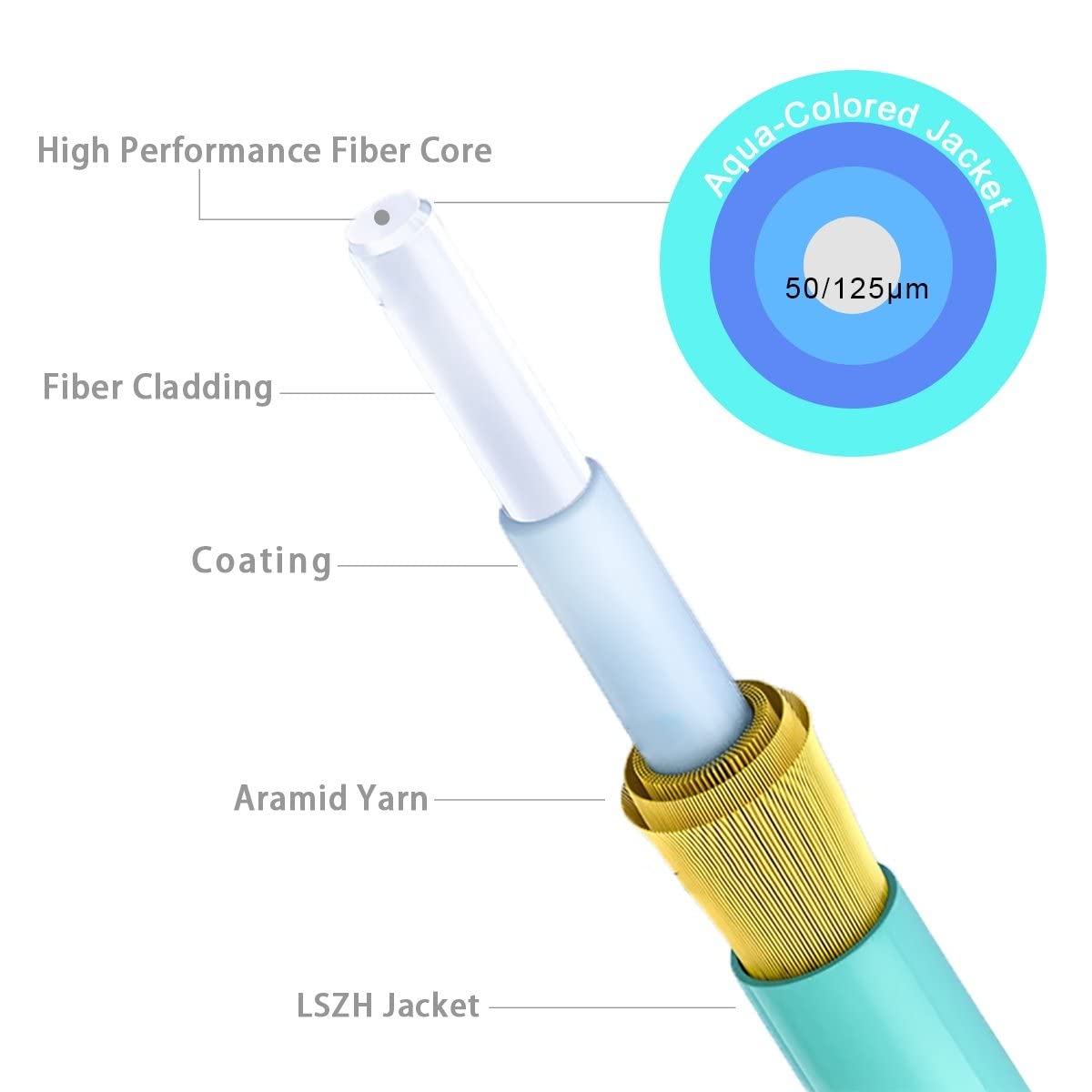

Fiber Core: High Rated 50/125um Fiber and Cladding

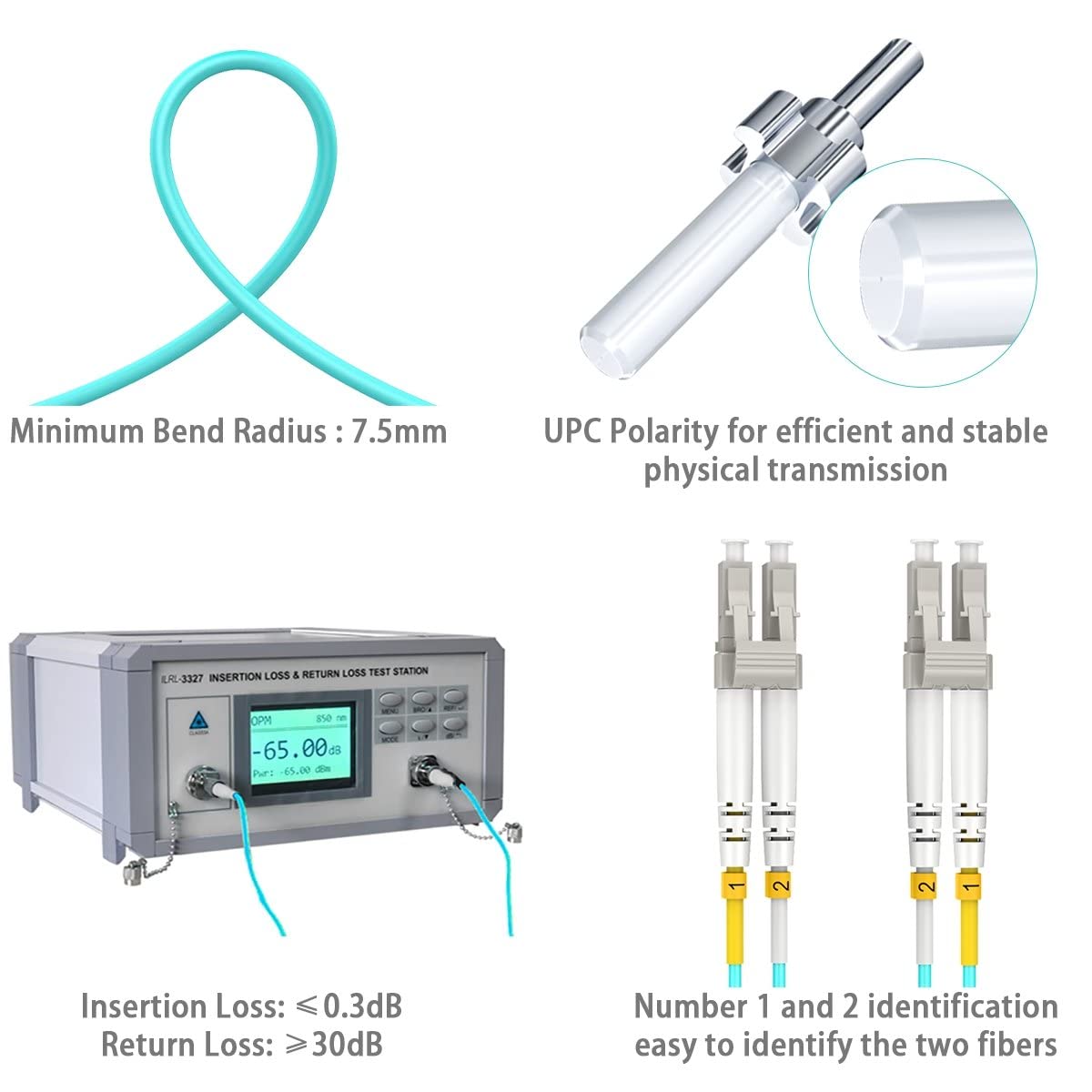

Insertion Loss: ≤0.3dB
Return Loss: ≥30dB
Wavelengths: 850nm and 1300nm
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm : 1.0 dB/km
Operating Temperature: -20~70°C
Cable Diameter: 2.0mm
| OM3 LC to LC | OM3 LC to SC | OM3 SC to SC | OM4 LC to LC | OM2 LC to LC | OS2 LC to LC | |
|---|---|---|---|---|---|---|
| Length Options | 0.7in~500ft | 3ft~500ft | 1.6ft~500ft | 0.7in~500ft | 1.6ft~200ft | 0.7in~500ft |
| Fiber Mode | Multimode | Multimode | Multimode | Multimode | Multimode | Singlemode |
| Data Rate | 10GB/40G | 10GB/40G | 10GB/40G | 40G/100G | 1GB/10GB | 1GB/10GB |
| Connector | LC/UPC to LC/UPC | LC/UPC to SC/UPC | SC/UPC to SC/UPC | LC/UPC to LC/UP | LC/UPC to LC/UPC | LC/UPC to LC/UP |
| LSZH Jacket | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
