LC to LC Fiber Optic Patch Cords Duplex, 50/125μm 1G/10G LSZH
OM2 Multimode Fiber Patch Cable is ideal for LED laser network equipment such as SFP and GBIC transceivers and is the preferred fiber specification for 1G Ethernet connections.
1G Ethernet Max Distance: 550Meters at 850nm/550Meters at 1300nm
10G Ethernet Max Distance: 82Meters at 850nm/220Meters at 1300nm
Fiber Core: High Rated 50/125um Fiber and Cladding

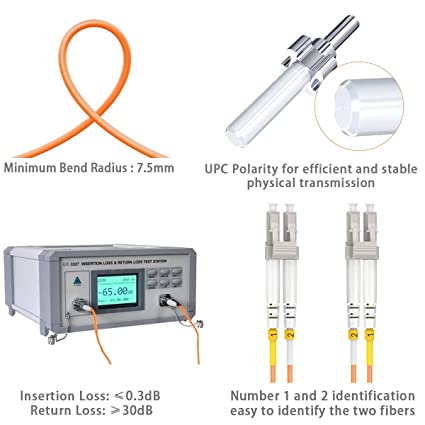

Insertion Loss: ≤0.3dB
Return Loss: ≥30dB
Wavelengths: 850nm and 1300nm
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm : 1.0 dB/km
Operating Temperature: -20~70°C
Cable Diameter: 2.0mm
| OM2 LC to LC | OM2 LC to SC | OM2 SC to SC | OM3 LC to LC | OM4 LC to LC | OS2 LC to LC | |
|---|---|---|---|---|---|---|
| Length Options | 1.6ft-200ft | 1.6ft-200ft | 1.6ft-200ft | 0.7inch-500t | 0.7inch-500ft | 0.7inch-500ft |
| Fiber Mode | Multimode | Multimode | Multimode | Multimode | Multimode | Singlemode |
| Data Rate | 1G/10G | 1G/10G | 1G/10G | 10G/40G | 40G/100G | 1G/10G |
| Connector | LC/UPC to LC/UPC | SC/UPC to LC/UPC | SC/UPC to SC/UPC | LC/UPC to LC/UPC | LC/UPC to LC/UPC | LC/UPC to LC/UPC |
| LSZH Jacket | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
