MPO to MPO Fiber Patch Cable

• ✅High Performance:  MPO-MPO fiber optic cable features premium quality OM3 multi-mode fiber, ensuring stable transmission and low insertion loss (≤0.35dB) for high-speed data transfer in short-distance, high-density environments. Compatible with QSFP+ and QSFP28 transceivers, this cable offers flexibility and scalability for your network system.

• 🌐Versatile Applications: Our MPO-MPO fiber optic cable is suitable for various networking environments, including data centers, enterprise networks, cloud computing infrastructure, optical transport networks, and GPON/EPON applications. Whether connecting servers, switches, or other network devices, RamboCables delivers high-performance solutions.

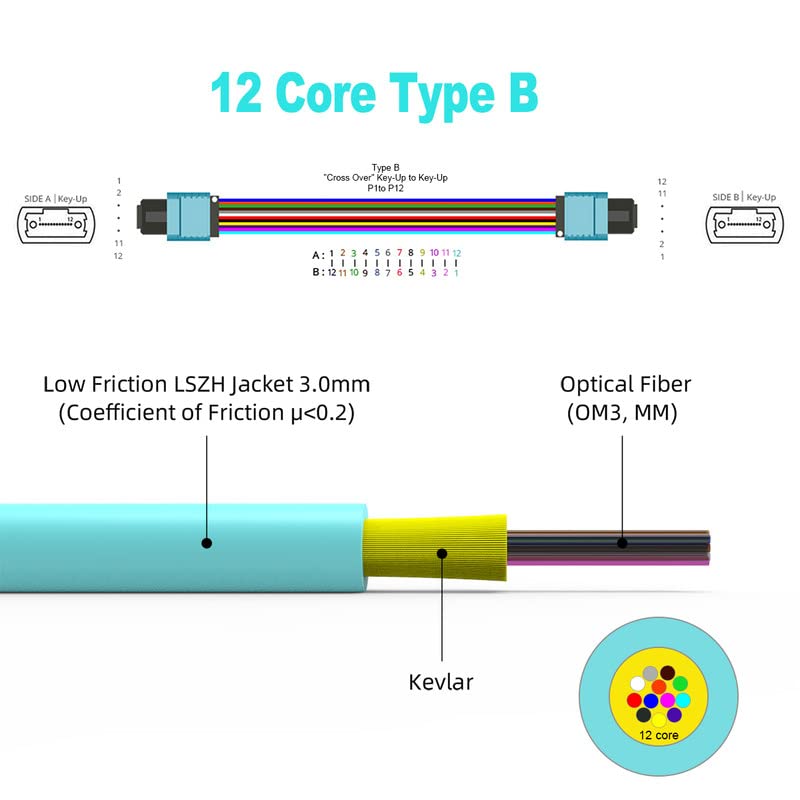

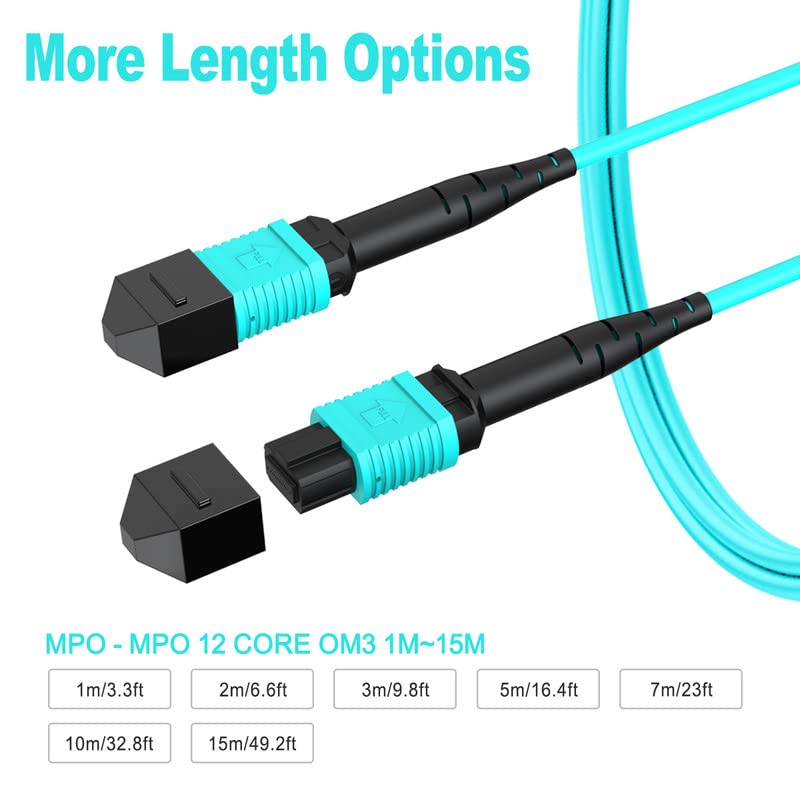

• 🔧Product Specifications: Available lengths: 1m, 2m, 3m, 5m, 7m, 10m and 15m. Type: 12-core OM3 multi-mode fiber, Type B polarity. Connector: MPO (MTP compatible). Insertion Loss: ≤0.35dB, Return Loss: ≥20dB. Wavelength: 850/1300 nm. Fiber Mode: OM3 50/125 μm. Jacket Material: LSZH, Color: Aqua.

• 🌟Safety & Durability: The low-smoke, zero-halogen (LSZH) jacket ensures fire resistance and enhances safety during operation. With a robust design and strict manufacturing standards, our MPO-MPO fiber cable is built to withstand the demands of daily use and maintain optimal performance.






Product Specifications:

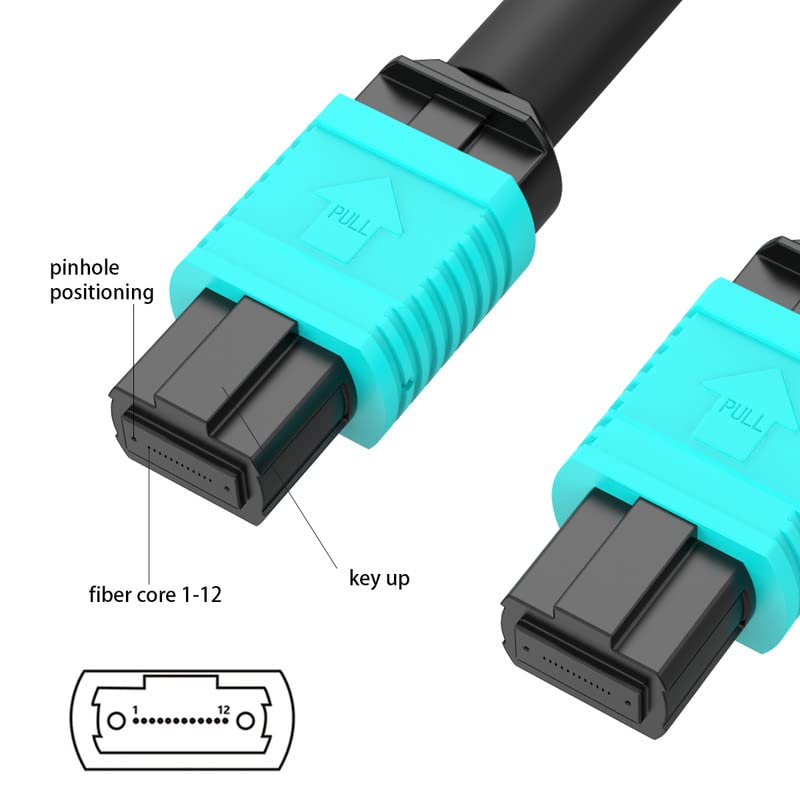

• Connector：MPO Female (pinless)

• Optical Fiber：OM3 50/125 μm

• Wavelengths: 850nm and 1300nm

• Insertion Loss：≤ 0.35dB

• Return Loss：≥ 30 dB

• Jacket OD：3.0mm

• Cable Jacket：LSZH

• Minimum Bend Radius：7.5 mm
