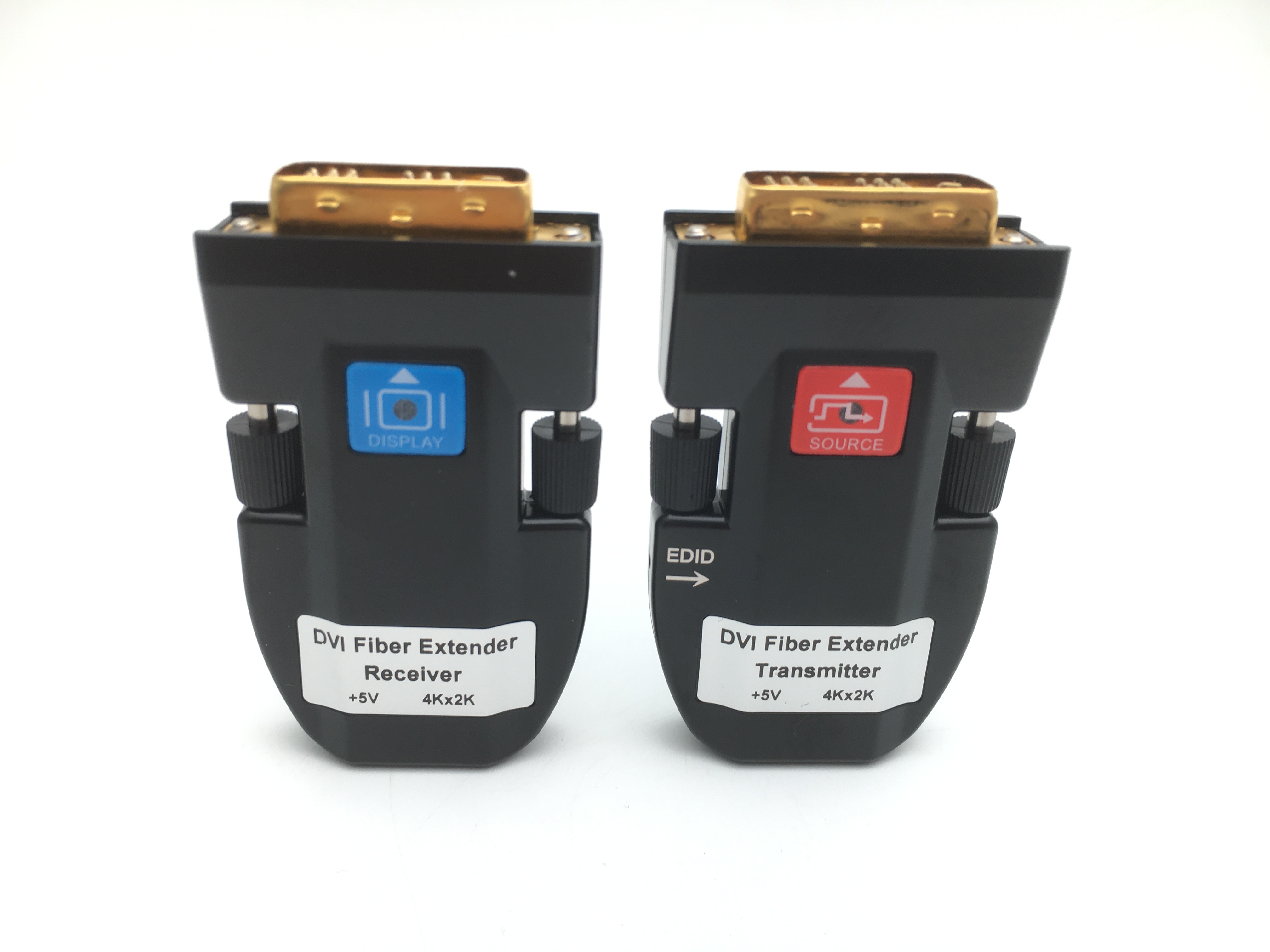

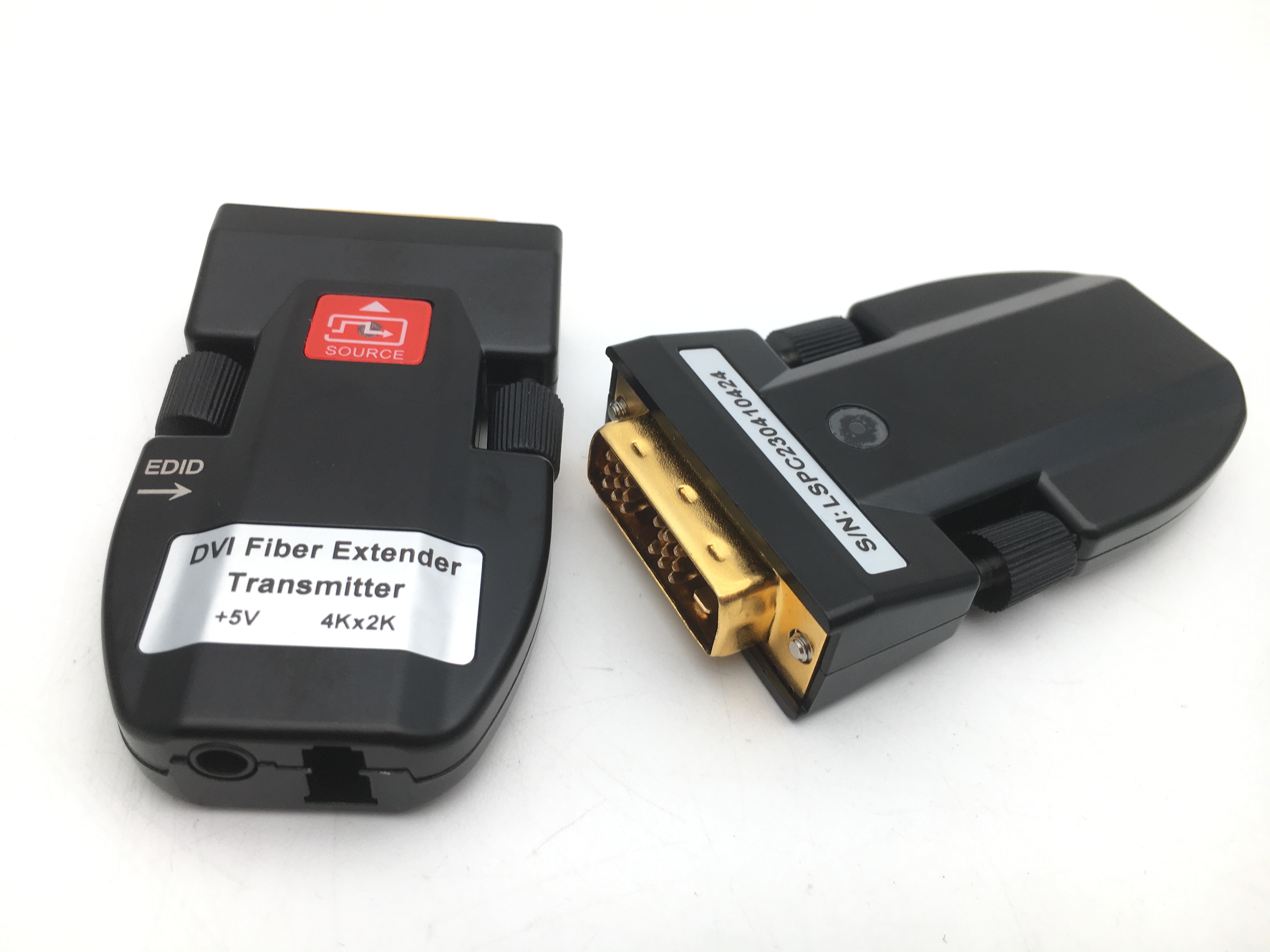

1xLC Detachable DVI Fiber Extender-4Kx2K@30HZ, Single-mode

OV11DVI-1FO-S
▶1xLC Fiber
▶SM mode or MM mode fiber
▶Length: MMF-300M; SMF-2KM

  • 1xLC Detachable DVI Fiber Extender-4Kx2K@30HZ, Single-mode
  • 1xLC Detachable DVI Fiber Extender-4Kx2K@30HZ, Single-mode
  • 1xLC Detachable DVI Fiber Extender-4Kx2K@30HZ, Single-mode
  • 1xLC Detachable DVI Fiber Extender-4Kx2K@30HZ, Single-mode
  • 1xLC Detachable DVI Fiber Extender-4Kx2K@30HZ, Single-mode
  • 1xLC Detachable DVI Fiber Extender-4Kx2K@30HZ, Single-mode
  • 1xLC Detachable DVI Fiber Extender-4Kx2K@30HZ, Single-mode


Features

Ø Support DVI resolution up to 1920*1200/60HZ(YUV 4:4:4).

Ø Support HDMI resolution up to 3840*2160/30HZ(YUV 4:4:4), and 3840*2160/60Hz (YUV 4:2:0) with HDMI to DVI cable.

Ø No DDC and HDCP.

Ø Distance is up to 300 meters over OM3 MMF, or 2km over SMF.

Ø EDID study from the display.

Ø Detachable feature with 1x LC multi-mode fibers.

Specification

Video Bandwidth

10.2Gbps

Case

Metal

Color

Black

Distance

SMF-2KM/MMF-300M

Connector/Fiber

1+18 pins DVI-D/LC

Resolution

HDMI4Kx2K/30HZ YUV444

              4Kx2K/60HZ YUV420

DVI1920x1200/60HZ

Laser Type

1310nm laser

Power Supply

5V 1A

Power Consumption

 1.4W

Dimension(LxWxH)

TX:69.5X39X12.4mm

RX:69.5X39X12.4mm

Environment

Operating Temperature-40°C~85°C

Download datasheet:OV11DVI-1FO-S.pdf
