4K HDMI Extender over Fiber with Audio, 1x LC Single-mode Fiber

OV11-HH-1FO-SA is an uncompressed full 4k UHD video fiber extender pair, which resolution is up to 4096*2016@ 60Hz 4:4:4 . The extender can transmit the HDMI2.0 signal with 18Gb/s over one Single-mode or multi-mode fiber to a distance of up to 700m.

The extender pair is using CWDM technology; there are 6 wavelength lasers in the extender pair. The data rate of the 1270nm/1290nm/1310nm/1330nm lasers are 6Gb/s, these 4 CWDM lasers transmit the HDMI TMDS signal from TX to RX unit, The 1490nm/1550nm laser data rate is 1.25Gb/s, which transmit the EDID,HDCP and RS232 signal Bi-directional.

Features

Ø Using only 1 LC fiber to transmit uncompressed 4K Ultra HD signal.

Ø Support 18Gbps video bandwidth.

Ø HDMI2.0 & HDCP2.2 supported.

Ø Video resolution up to 4K@60Hz YUV4:4:4.

Ø CWDM Single Fiber Technology.

Ø 1270/1290/1310/1330/1490/1550nm DFB lasers inside.

Ø Transmit signal over SM fiber.

Ø Extension distance up to 700 meters.

Ø Support bi-directional RS232.

Ø Support 1 way analog audio signal.

Ø Zero frame delay;

Ø HDR and Dolby Vision support;

Optical

Ø Optical source: CWDM DFB Laser

Ø Fiber: 1 core LC, Single Mode

Ø Distance:  700M

Package

Ø TX x 1

Ø RX x 1

Ø 12V/2A power adapter x 2

Ø IR receiver cable x 1

Ø IR emitter cable x 1

Ø Phoenix terminal(male) x 2

Ø Mounting bracket with screw

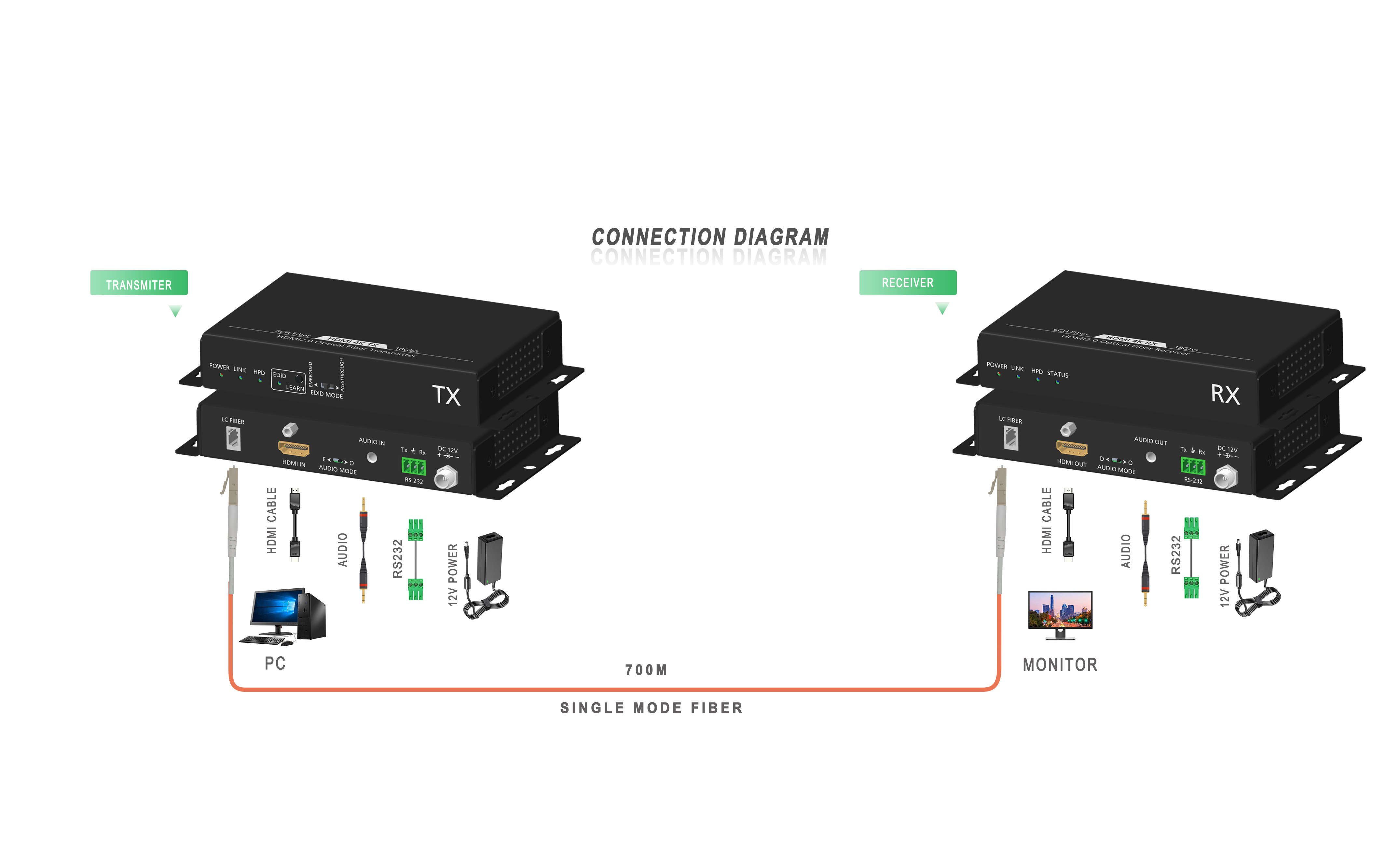

Application

Specification

Download datasheet:

H11 OV11HH-1FO-SA.pdf
