OM2 SC to LC Fiber Patch Cable

• 【3.28ft/1m OM2 SC-LC Fiber Patch Cable】The 50/125μm OM2 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. OM2 SC LC fiber patch cable save more space for any places fiber patch cables are needed.

• 【Wide Usage】OM2 SC-LC Fiber Optic Patch Cable Multimode 1Gb is designed for high density applications in gigabit ethernet, fiber channel, local area networks, data center, premise installation, wide area networks, commercial and so on. MMF used for LED laser network equipment such as SFP and GBIC transceivers, media converters, industrial Ethernet devices, and optical fiber NIC's, in gigabit ethernet 1000Base-LX, 1000Base-SX, or 10GBase-S/LR4/LRM.

• 【Transmission Distance】OM2 SC to LC fiber patch cables bandwidth is 500/500MHz.km @850/1300nm, allow for 1Gb Ethernet transmission distance of 550 Meters at 850nm wavelength /550 Meters at 1300nm wavelength; 100Gb Ethernet transmission distance of 82 Meters at 850nm wavelength /220 Meters at 1300nm wavelength.

OM2 LC to SC Fiber Patch Cable Multimode Duplex

OM2 Multimode Fiber Patch Cable is ideal for LED laser network equipment such as SFP and GBIC transceivers and is the preferred fiber specification for 1G Ethernet connections.

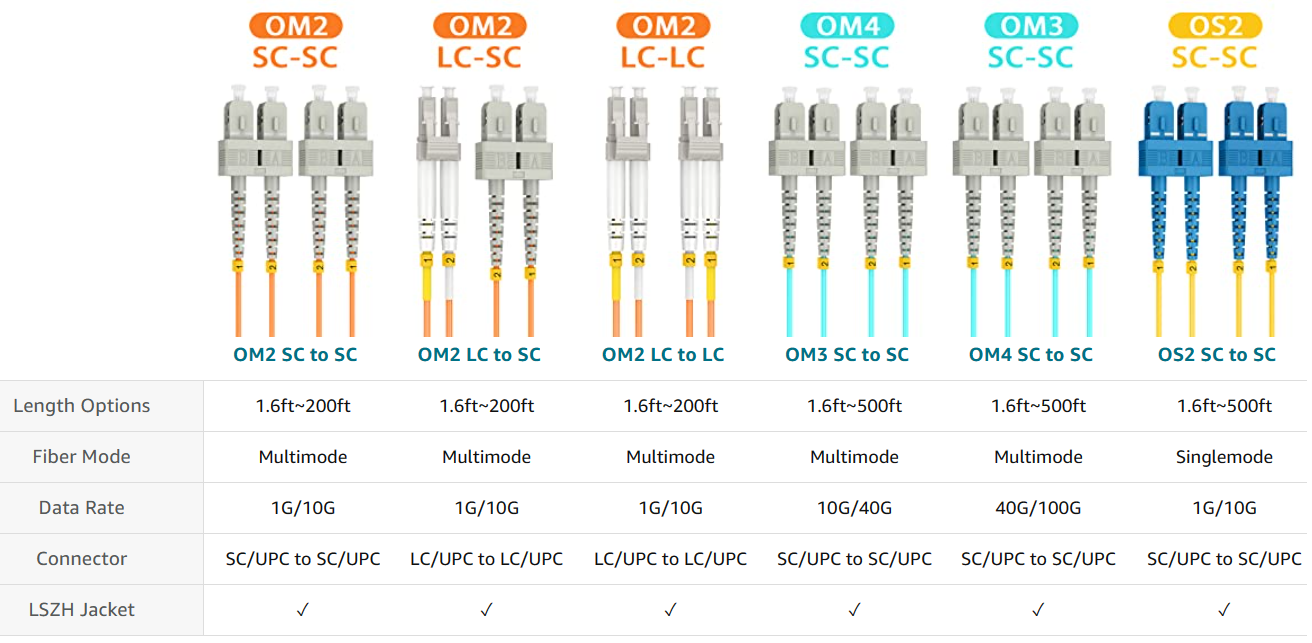

More length options to suit your cabling needs: 0.5m(1.6ft)~61m(200ft)

1G Ethernet Max Distance: 550Meters at 850nm/550Meters at 1300nm

10G Ethernet Max Distance: 82Meters at 850nm/220Meters at 1300nm

• Fiber Core: High Rated 50/125um Fiber and Cladding

• Insertion Loss: ≤0.3dB

• Return Loss: ≥30dB

• Wavelengths: 850nm and 1300nm

• Attenuation at 850nm: 3.0 dB/km

• Attenuation at 1300nm : 1.0 dB/km

• Operating Temperature: -20~70°C

• Cable Diameter: 2.0mm

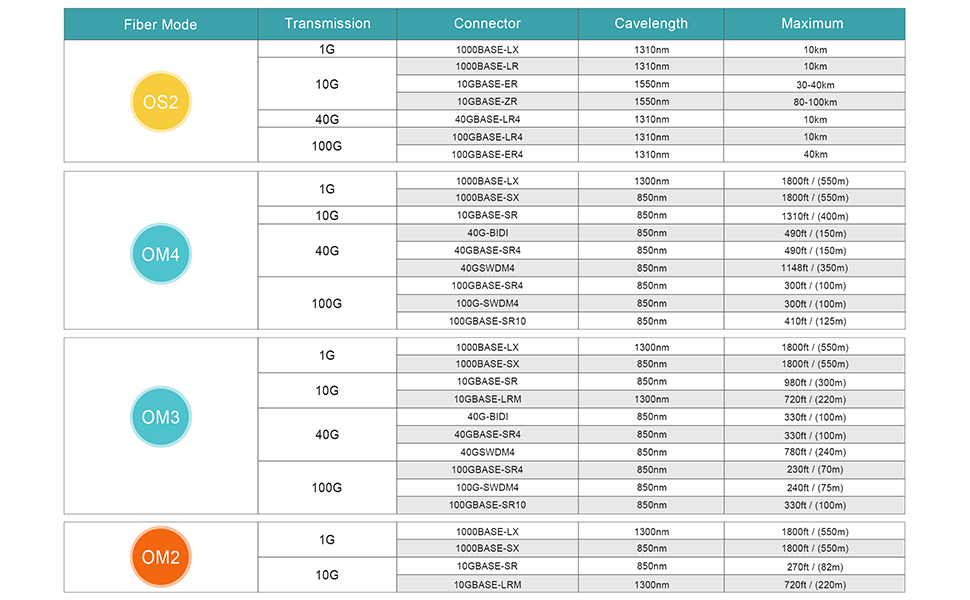

Ethernet Max Distance of Fiber Types
