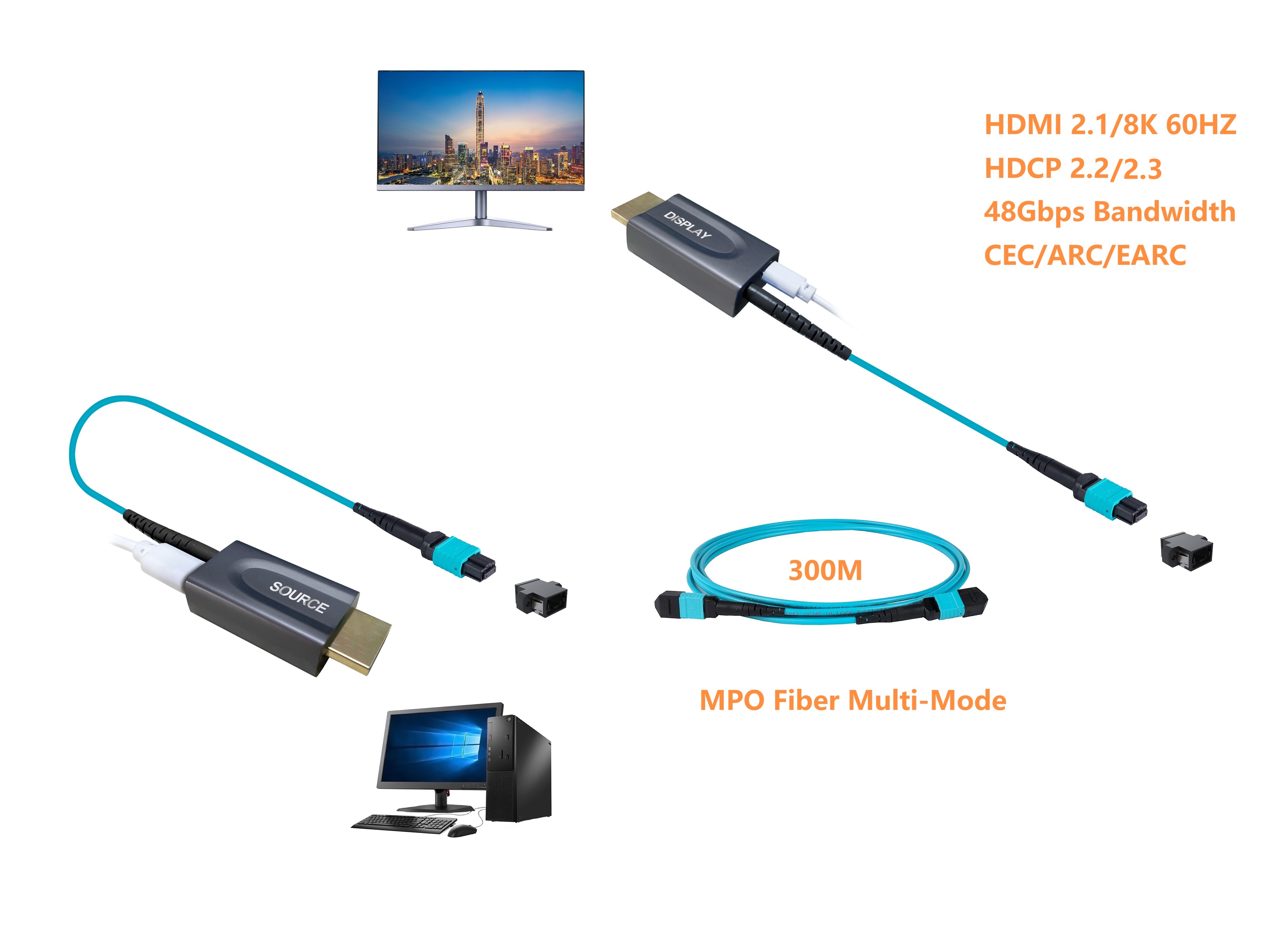

OV11HH-MPO-H21
▶MPO Fiber
▶MM mode
▶Length: 300M
Features
Ø HDMI2.1 & HDCP2.3 supported.
Ø Support High Definition, up to 8K@60Hz YUV4:4:4.
Ø Support DDC/HPD/EDID bypass.
Ø Support CEC/ARC/EARC/HDR.
Ø Optic fiber with MPO connector (Up to 300M).
Ø True 12Gbps per channel, 48Gbps in total.
Ø Low EMI, does not need shielded cable.
Ø Adopt 850nm multi-mode fiber.
Ø Small size and detachable design for easy installation.
Optical
Ø Optical source: VCSEL
Ø Fiber: 8 core MPO, OM3 MM, Type A
Ø Distance: 300 Meter (984ft)
Package
Ø Transmitter x 1
Ø Receiver x 1
Ø Micro USB cable x 2
Ø MPO coupler x 2
Specification
Transmitter | Receiver | ||
HDMI compliance | HDMI 2.1 | ||
Video Bandwidth | 48Gbps | ||
Supporting Resolution & Distance | 8K@60HZ 4K@120HZ 300M(984ft) | ||
Connector/Fiber | HDMI-A 19 Pin (male)/ MPO | ||
Power Consumption | 0.34W (typ) | 0.34W (typ) | |
Dimension(WxDxH) | Model: 21x34x11 (mm) Pigtail 60CM Package: 145x170x30(mm) | ||
Weight | Model:33g | Model:33g | |
Package: 170g | |||
Environment | Operating Temperature Range: 0°C~70°C | ||
Download Datasheet:
OV11HH-MPO-H21.pdf
