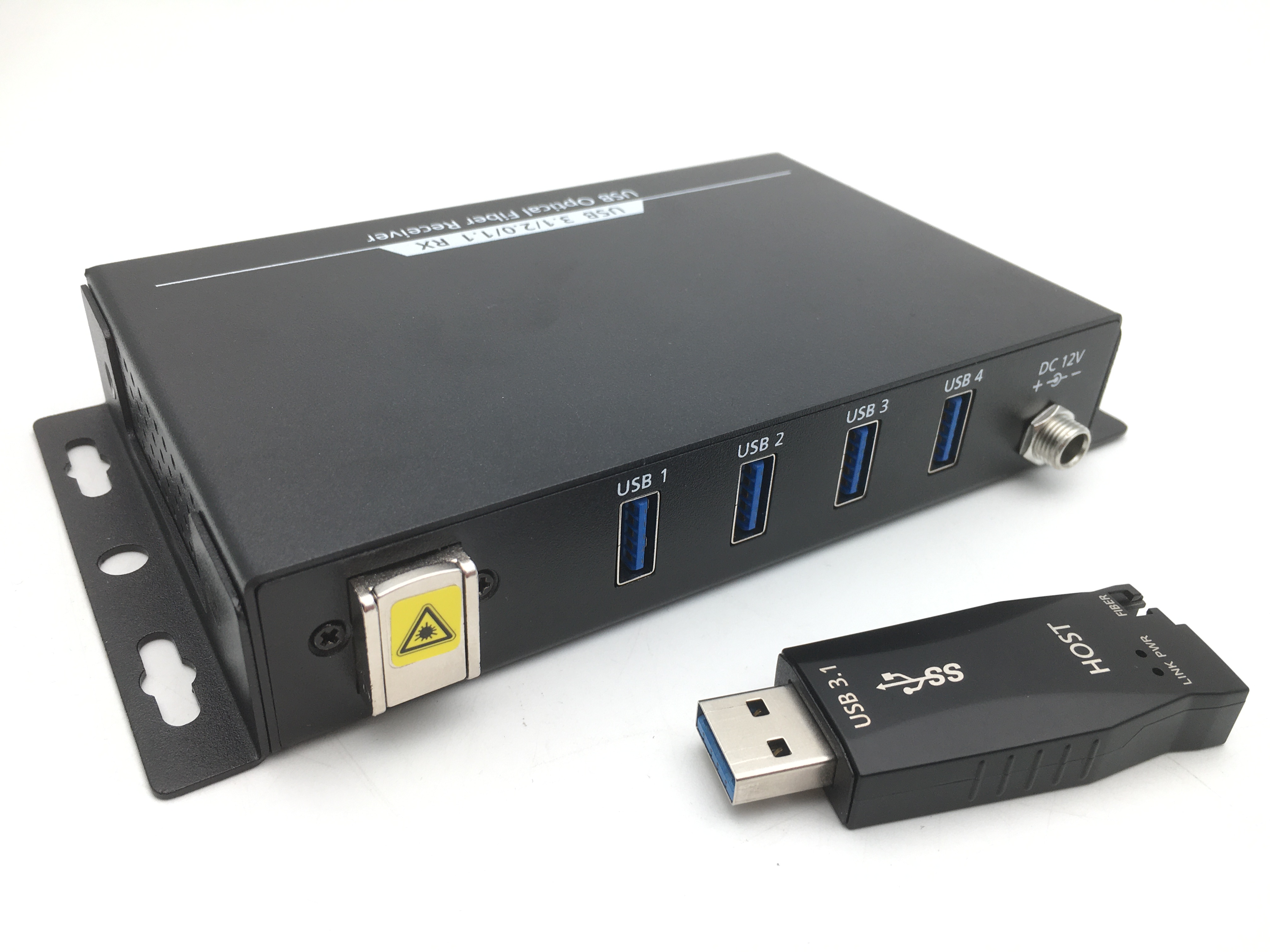

OV14UAA-1FO-321
▶LC Fiber
▶SM or MM mode
▶Length: 300M
Features
Ø Host and Device units are Compatible with USB3.2 GEN 1/ USB2.0/1.1.
Ø Max extension distance 100m for graphic and 300m for data.
Ø Pure hardware design, no driver needed, support plug and play.
Ø Data rate up to 5Gbps.
Ø Device unit Integrated 4 port USB3.2 Gen 1 /2.0/1.1 hub.
Ø Compliant with Windows 8, Windows 8.1, Windows 10, full version of the Linux or Unix operation systems.
Ø Small size and easy installation.
Specification
TX | RX | |
USB Interface | USB Type-A Male x 1 | USB Type-A Female x 4 |
Enclosure Material | Zinc Alloy | Metal |
Voltage | No power supply required | DC 12V |
Distance | Data signal: 300 Meter(984ft) Video signal: 100 Meter(328ft) | |
USB Compatible | 3.2 GEN 1/2.0/1.1 | |
Dimension(LxWxH) | TX: 62x20x10.5mm | RX: 135x75x26mm |
Package: 220x160x120mm | ||
Weight | TX: 346g | RX: 345g |
Package:1.26kg | ||
Environment | Operating Temperature： -10°C~60°C Storage Temperature： -45°C~+85°C | |
Application
Download Datasheet：
OV14UAA-1FO-321.pdf
