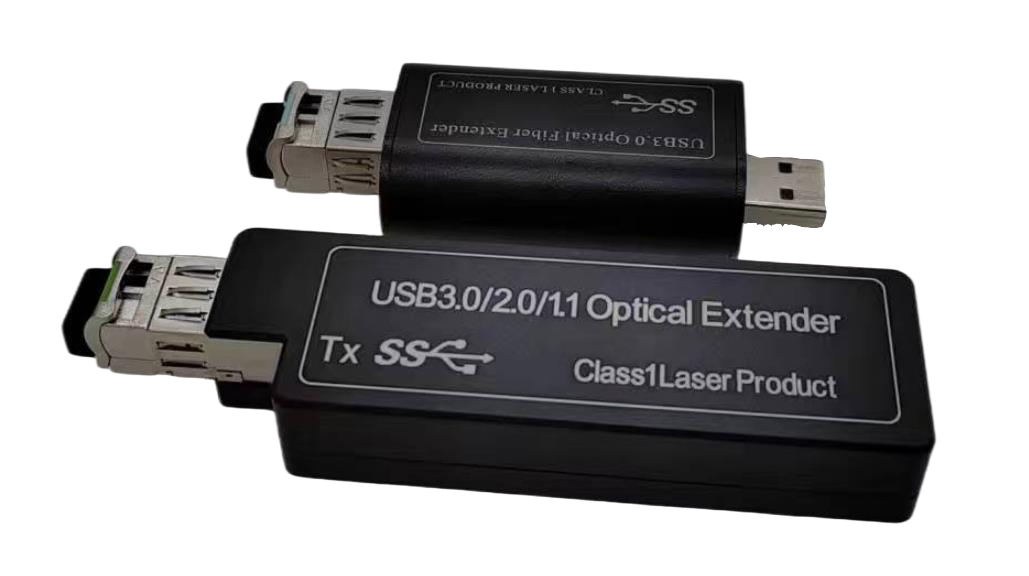

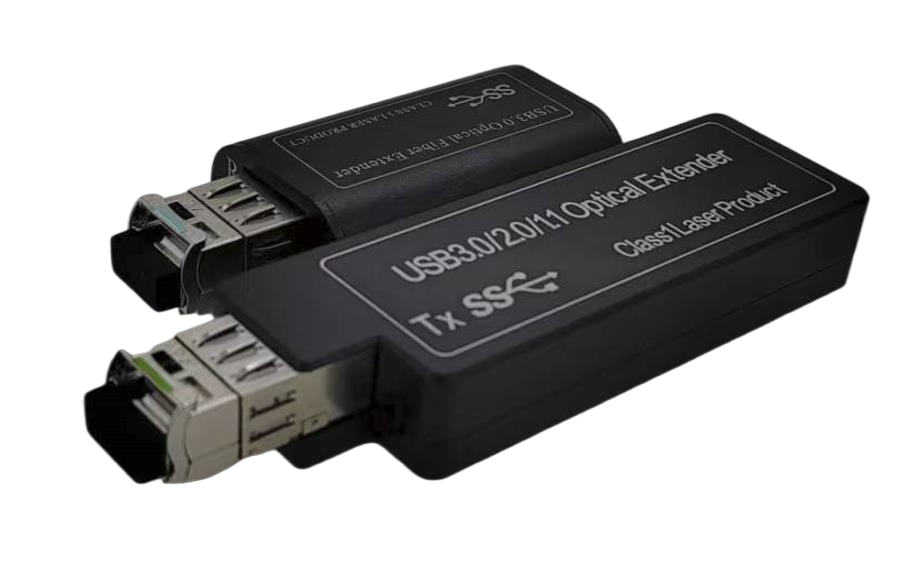

Mini USB 3.0/2.0/1.1 Fiber Extender

USB3.0/2.0/1.1: 1 port

  • Mini USB 3.0/2.0/1.1 Fiber Extender
  • Mini USB 3.0/2.0/1.1 Fiber Extender
  • Mini USB 3.0/2.0/1.1 Fiber Extender
  • Mini USB 3.0/2.0/1.1 Fiber Extender

OV11UU-1FO-M30: 1LC, Only support USB 3.0

OV11UU-1FO-M3C: 1LC,Compatible with USB3.0/2.0/1.1

OV11UU-2FO-M30: 2LC, Only support USB 3.0

OV11UU-2FO-M3C: 2LC, Compatible with USB3.0/2.0/1.1


Our mini USB 3.0/2.0/1.1 to Fiber Optic Extender use a small form Tx, which make the extender smaller and save more assembly space.

The device can extend high bandwidth USB 3.0 webcams and storage devices ,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry,government office, medical system, commercial presentation, multimedia and public utilities , Kinect devices etc


Features:

Ø Max extension distance 150m for SM fiber cable or 100m for OM3 MM fiber cable

Ø Duplex/Simplex LC fiber connecter, pure hadware design, no driver needed, support plug and play

Ø Support USB 3.0 superspeed up to 5Gbps, USB 3.0 Type A receptacle

Ø Compatible with USB 2.0 and USB 1.1

Ø Support Kinect devices

Ø Compliant with Windows 8, Windows 8.1, Windows 10, full vesion of the Linux or Unix operation systems

Ø Small size and easy installation


Specification:

Optical

Connector

Duplex/Simplex   LC

Wave   length

1310nm/1270/1330nm

Physical

Size   (L× W ×H)

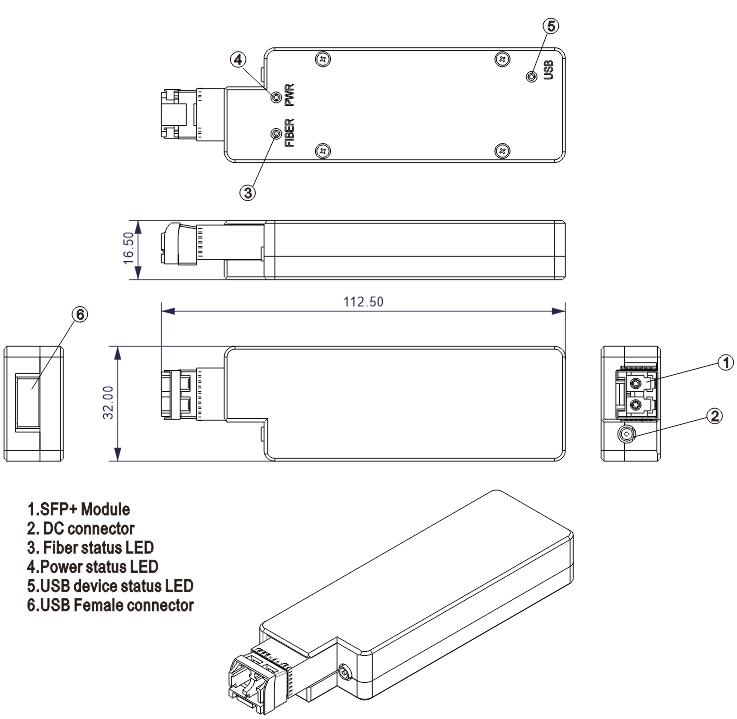

TX:89mm x33mm x18mm

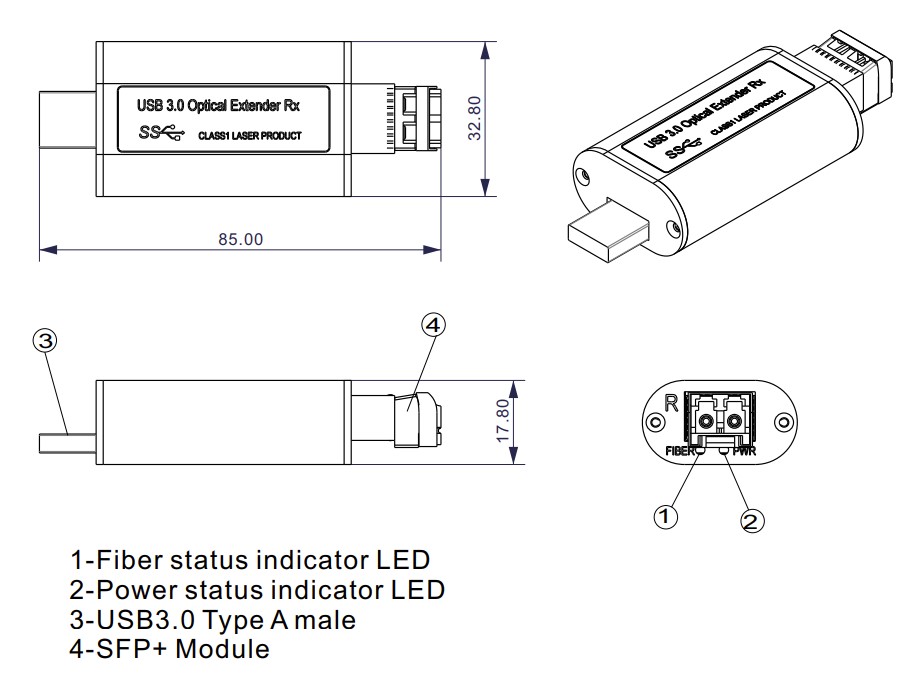

RX:85mmx33mmx18mm

Case

Aluminum

Color

Black

N.W.

0.75Kg

Power

Sender   Voltage

5~12V   DC

Sender   power consumption

<10W

receiver   power consumption

<5W

Environment

Working   temperature

-20℃~50℃

Storage   temperature

-40-85℃

Humidity

0-95%   (non-condensing)



Equipment pow-on sequence

1. Receiver (host-side) input USB 3.0 port

2. Transmitter (client-side) power on with the DC 5V~12V adaper

3. The USB 3.0 device connect to the transmitter (client-side)


Note:

After fiber is connected, the fiber indicator is on, otherwise it's off. Ater the USB device is inserted, the USB indicator will be on. If the host PC does not recognize the device, you can carry out the following operations:

1. Press the REST key of transmitter (client-side) 5 seconds, restart the device

2. Connect another USB 3.0 interface of the host PC

3. Uninstall the "USB 3.0 hub" in the device manager, re-connect

4. When the device is working, do not plug USB 3.0 and fiber cable, so as to avoid the equipment does not work properly
