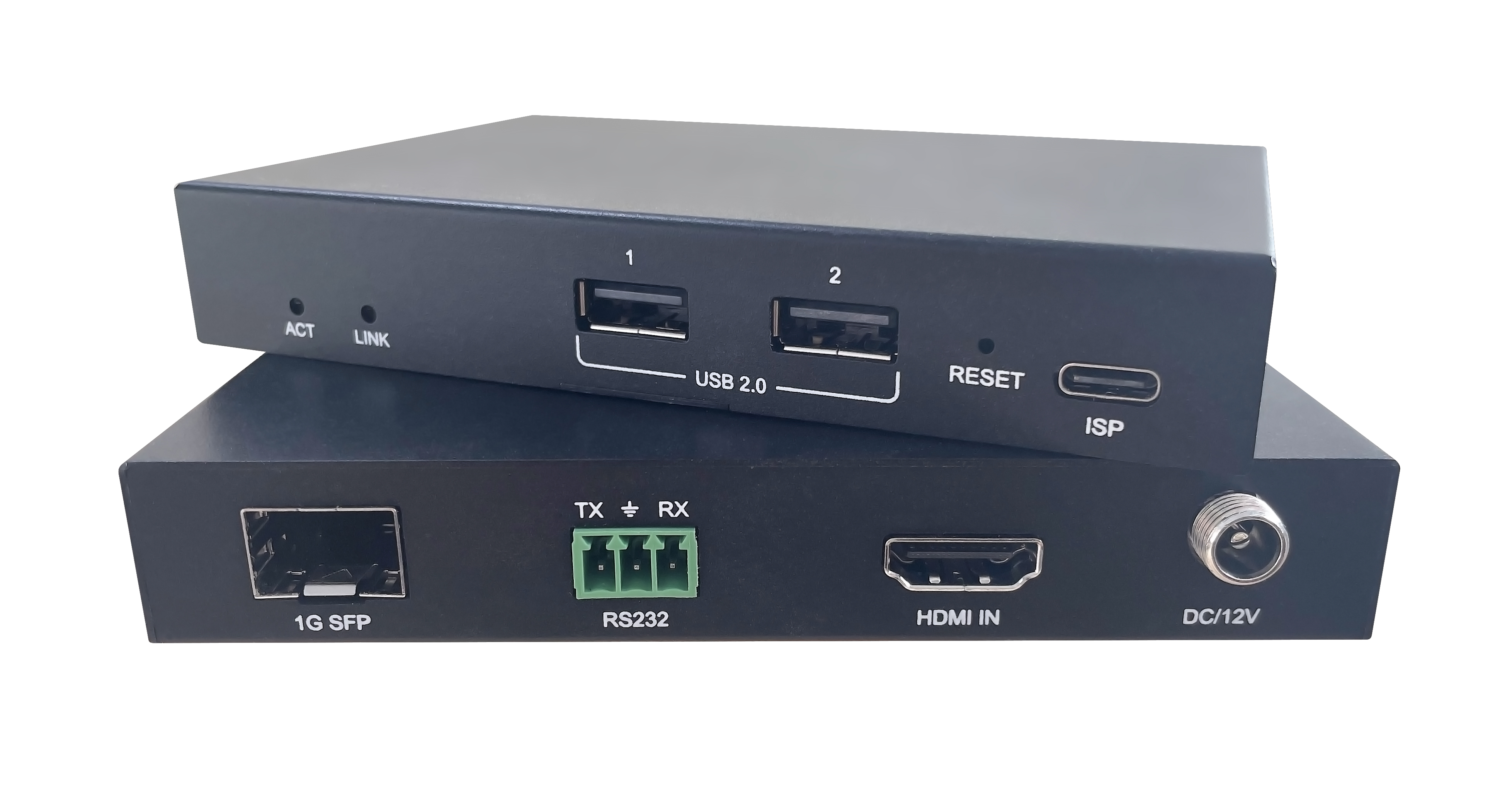

OVIP11HH-H20-U20:4K HDMI over IP extender which uses a visually lossless compression technology to deliver HDMI, RS232, and USB2.0/KVM up to a length from 300M to 60KM over 1Gb network with the in-build fiber SFP network interface.. The Tx and Rx units can be connected together for a Point-to-Point via optical fiber or a Point-to-Many connection via a network switch.
Features
Ø Support UHD 4K@60Hz YUV4:4:4 for both input and output over IP, video bandwidth 18Gbps.
Ø HDMI2.0 & HDCP2.2 compliant.
Ø Support HDR10/HDR10+/Dolby vision.
Ø Support 1Gbps SFP fiber module expansions.
Ø USB2.0 downstream port.
Ø Support USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images.
Ø Audio formats support Dolby Atmos, TrueHD, Digital+, DTS X, HD Master Audio, HD High Resolution Audio,PCM2-8CM.
Ø Support too-way RS232.
Ø Ultra-low latency - less than 5ms.
Ø Low EMI. Small size and easy installation.
Ø Virtually unlimited system size.
Ø Ideal solution for digital signage applications.
Optical
Ø Optical source: 1Gb SFP module
Ø Distance: 300M to 60KM
Package
Ø TX x 1
Ø RX x 1
Ø 12V power adapter x 2
Ø USB type-c cable x 2
Ø Phoenix terminal(male) x 2
Ø Mounting bracket with screw
Application
1. Point-to-Point Extender
2. Point-to-Many Splitter Extender (Using a Network Router/Switch)
Specification
Transmitter(Encoder) | Receiver(Decoder) | |
HDMI compliance | HDMI 2.0 | |
HDCP | HDCP2.2/1.4 | |
Video Bandwidth | 18Gbps | |
Transmission Distance | 300M-60KM | |
Video Resolution | 4Kx2K@60HZ(4:4:4 8bit) | |
Video Compression Standard | Self-define coding | |
Video Network Bandwidth | 1Gbps | |
Connector | HDMI-A 19 Pin (male) | |
Fiber | 1GB SFP module | |
USB/KVM Port | 1xUSB 2.0 Type-C(HOST) | 2xUSB 2.0 Type-A(Device) |
RS232 | 3 pin terminal Phoenix connector | |
LEDs | ACT LED: Solid（Red）when power supply is connected | |
LINK LED: Flashing（Blue）when the unit is streaming video | ||
ESD Protection | Human body model-±8KV(air-gap discharge) &±4KV(contact discharge) | |
Latency | <5ms | |
Power Supply | 12V/2A DC | |
Power Consumption | 3W | 3W |
Color | Black | Black |
Dimension (LxWxH) | Model: 120x75x20mm | Model: 120x75x20mm |
Package:270x150x85mm | ||
Weight | Model: 300g | Model: 300g |
Package: 950g | ||
Environment | Operating Temperature Range: 0°C~40°C Storage Temperature Range: -20°C~60°C | |
Relative Humidity | 20-90% RH (no condensation) | |
